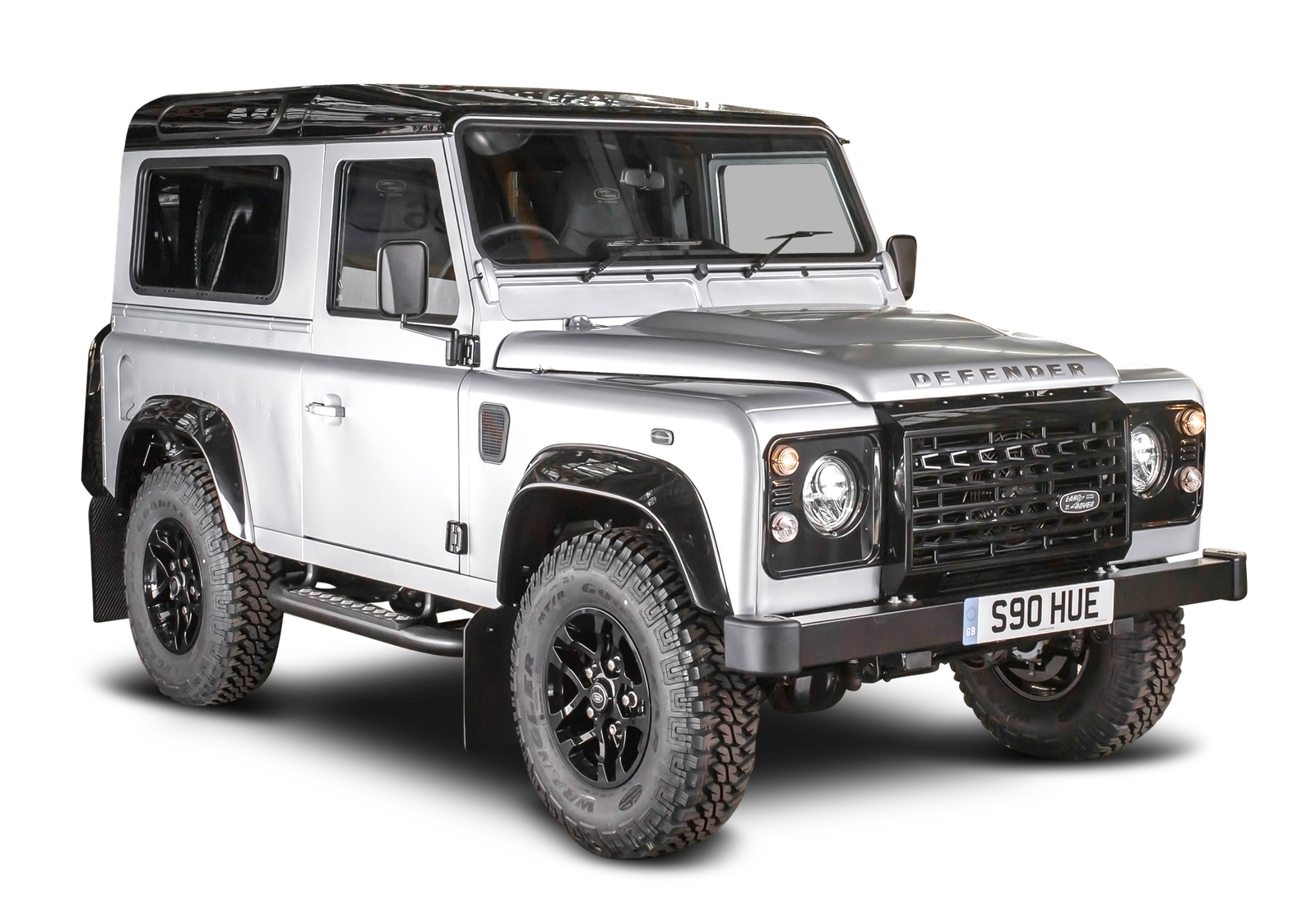

LAND ROVER DEFENDER 2.4 TD4 DIESEL – STAGE 1 PERFORMANCE SOFTWARE
$1,240.99
Stage 1: 122HP → 158HP (+36HP) | 265 → 310 lb-ft (+45 lb-ft). Stage 2: 182HP / 350 lb-ft. Siemens Continental SID204 / SID206. OBD or Bench flash. 100% reversible.
LAND ROVER DEFENDER 2.4 TD4 DIESEL – STAGE 1 PERFORMANCE SOFTWARE (2007-2011)
2.4L TD4 TDCi Turbo Diesel Inline-4 — Siemens Continental SID204 / SID206 — OBD or Bench Flash
SKU: AMT.LR.DEF.TD4.DIESEL.STG1
Performance Gains
| Specification | Original | Stage 1 | Stage 2 |
|---|---|---|---|
| Power (HP) | 122 | 158 (+36 HP) | 182 (+60 HP) |
| Torque (lb-ft) | 265 | 310 (+45 lb-ft) | 350 (+85 lb-ft) |
Required & Recommended Parts
| Tune | Required Parts | Recommended Parts |
|---|---|---|
| Stage 1 | — | K&N Panel Filter |
| Stage 2 | — | High-flow air filter, performance exhaust |
Overview
The Land Rover Defender 2.4 TD4 uses the Siemens Continental SID204 or SID206 ECU family, which is well established in diesel remapping circles. Like its successor, the 2.4 engine responds very well to optimized boost and fueling calibration, with the biggest gains felt in the low and midrange torque band where Defender owners spend most of their time. The platform suits both towing and off-road use, and Stage 1 is emissions-intact with DPF and EGR retained. Off-road delete options are available separately for motorsport and competition use only.
Key Features
- RPM limiter increased
- Top speed governor removal (where available in software)
- Improved fuel efficiency at cruise
- Optimized throttle response and drivability
- Emission standards maintained on Stage 1
- Test drive with datalog analysis
Off-Road Delete Options (available as add-ons)
| Option | Price | Notes |
|---|---|---|
| DPF + EGR + DEF Off + Flaps + VMAX | +$500 | For off-road / motorsport use only |
| EGR + DEF + DPF Off | +$400 | For off-road / motorsport use only |
| EGR Off only | +$150 | For off-road / motorsport use only |
| DPF Off only | +$150 | For off-road / motorsport use only |
| DEF (AdBlue) Off only | +$200 | For off-road / motorsport use only |
Off-road delete options are for motorsport and competition use only. Customer is responsible for compliance with local emissions regulations.
Vehicle Specifications
| Parameter | Specification |
|---|---|
| Production Years | 2007-2011 |
| Engine | 2.4L TD4 TDCi Turbo Diesel Inline-4 |
| ECU Type | Siemens Continental SID204 / SID206 |
| Flash Method | OBD or Bench |
| Time Required | 3–5 business days (ECU mail-in) or same day (OBD) |
Programming Options

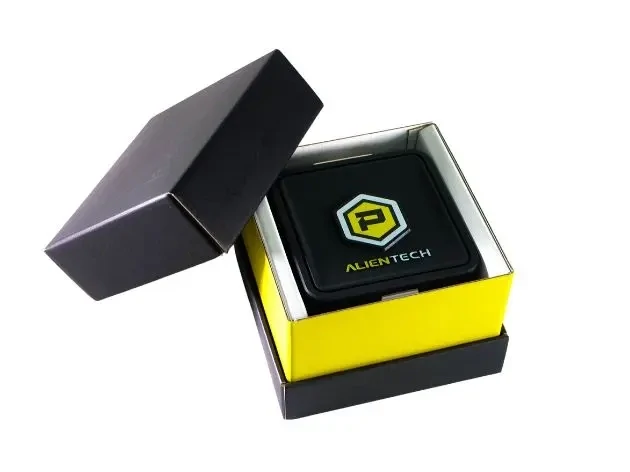

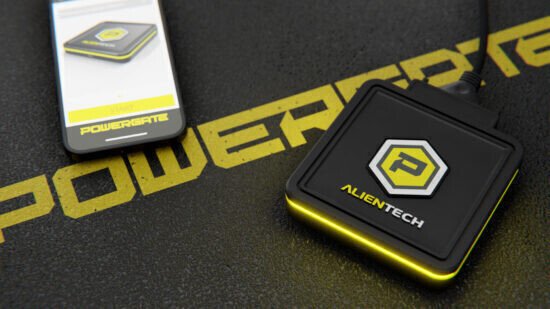

Option 1 — OBD Flash (no ECU removal): Vehicle is tuned via the OBD-II port at AMT Tuning or using the POWERGATE4 tool. No ECU removal required.
Option 2 — ECU Mail-In (bench flash): Remove your ECU and ship it to AMT Tuning. We flash it on the bench and return it within 3–5 business days.
- Remove the ECU from your vehicle (email sales@amttuning.com for removal guidance)
- Package securely and ship to AMT Tuning at the address below
- AMT will read your stock file and flash your custom tune
- Reinstall the returned ECU — the tune is active immediately on start-up
Shipping & Contact
AMT Tuning Ltd, 6-25 Edilcan Drive, Concord, Ontario L4K 3S4 Canada
Phone: +1 877 469 9440 | Email: sales@amttuning.com
| Make | Land Rover |
|---|---|
| Vehicle Make | Land Rover |
| Model | Defender |
| Production Year | 2007-2011 |
